VNP Output Webservices - Orders/Subscriptions
WS Output Update Order

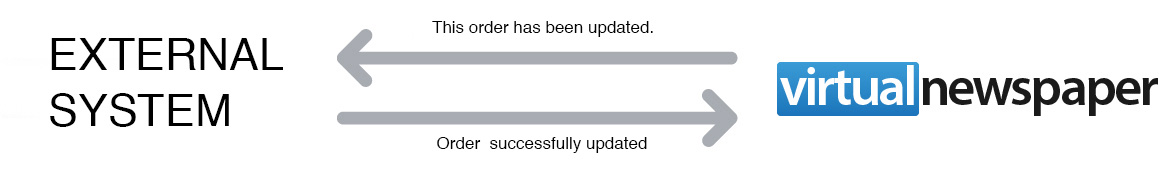

"UpdateOrder.jsp" is used by VirtualNewspaper to transmits to any external platform updates occurred on a particular order, allowing the external platform to update its own datas accordingly. Each time a particular order is updated on VirtualNewspaper, this webservice will take care to inform the external platform about these changes. All order informations are transmitted, even if only few of them have been updated.
How to invoke this webservice
VirtualNewspaper will make this POST call to an external webservice, providing a complete set of informations coming out from any order updated on VirtualNewspaper.
Warning:
This POST call will be url encoded
Webservice url
Any external platform needs to provide a proper webservice url, allowing VirtualNewspaper to make its own call.
Parameters
VirtualNewspaper will transmit a complete parameters set, even if only few of them have been updated by the end user. Any external platform needs to be ready to collect and store informations arriving from VirtualNewspaper.
Example
Parameters will be provided using this syntax:
?customerId=376387&product_id=fr34df56&and_so_on...
A different call will take place for every updated order.
Parameters and their values, will be separated by the "equal to" char ("=").
After each parameter/value an "&" char is provided.
Webservice reply
Any external platform, once datas will be collected, needs to reply with its own internal order ID.
Two different replies are expected by VirtualNewspaper :
01) Order has been found and its details have been updated accordingly.
In this scenario a JSON reply will look like this :
{
“status” : “OK”
}
02) Something went wrong.
In this scenario a JSON reply will look like this :
{
“status”:“KO”,
“message”:“Error message”
}
GIFT and MULTIPLE ORDERS
In MULTIPLE order (or business order) we have a "father" order that is related to more "sons" orders. The sons are allowed to access the content.
In GIFT order (or business order) we have a "father" order that is related to one "son" order. The son is allowed to access the content.
For those orders the webservice sends:
parent_order_internalId = FATHER ORDER internal Id (internal VNP Id)
parent_order_id = FATHER ORDER external Id (the external platform Id)
parent_order_scope = declare if it's a GIFT or BUSINESS order
PARAMETERS REFERENCE TABLE
| PARAMETER NAME | VALUE FORMAT | DESCRIPTION |
|---|---|---|
| orderId | int(11) | External platform unique order ID |
| id | int(11) | VirtualNewspaper unique order id |
| activationDate | date | Subscription start date |
| expireDate | date | Subscription expiration date |
| customerId | int(11) | External platform unique customer id |
| [provider]_uid | String(255) | Third party provider unique customer id. In case users datas are handled by a third party this will contain the third party user ID. E.g. If the third party is Gigya the parameter will be named gigya_uid |
| product_id | String | External platform unique product id (it needs to be set in VirtualNewspaper back-end) |
| number | varchar(60) | VirtualNewspaper auto generated order number |
| date | date | Order registration date |
| amount | Double (10,2) | Total amount |
| discount | decimal(10,2) | Total discounted value |
| discountPerc | decimal(10,2) | Discount % |
| discountCode | varchar(30) | Coupon code to activate any discount |
| confirmed | int(11) | (1 or 0) if set to 1, any order will be activated |
| device | varchar(150) | End user device (e.g. web, android, iOS) |
| deleted | tinyint(4) | (1 or 0) if set to 1, any order will be hidden (deleted) inside VirtualNewspaper back-end |
| appId | String | |
| apple_transaction_id | varchar(20) | |
| articleCode | String | |
| articleName | String | |
| processed | Int | (1 or 0) 1 means VirtualNewspaper has successfully processed this order |
| gateway_id | int(10) | |
| id_user | Int | VirtualNewspaper unique user id |
| monthsValidity | Int |  |
| payment_Id | int(11) |  |
| paymentCode | String | Payment method code |
| paymentDate | date | |
| shipping | mediumtext | |
| shipping_administrative_area_level_1 | varchar(200) | |
| shipping_administrative_area_level_2 | varchar(200) | |
| shipping_administrative_area_level_3 | varchar(200) | |
| shipping_formatted_address | varchar(500) | |
| shipping_ordini.lat | varchar(50) | |
| shipping_ordini.lng | varchar(50) | |
| shippingAddress | mediumtext | |
| shippingCity | mediumtext | |
| shippingCompany | mediumtext | |
| shippingName | mediumtext | |
| shippingNation | mediumtext | |
| notes | mediumtext | |
| shippingPrice | String | |
| shippingSurname | mediumtext | |
| shippingTelephone | mediumtext | |
| shippingTown | mediumtext |  |
| shippingWeight | Double (7,2) | |
| shippingZip | String |  |
| transactionId | text |  |
| usedCopies | varchar(100) | Contains copies used with this order. Possible values: 20160620virtualnews refers to the copy of 20/06/2016 for the title Virtual News. |
| detailOrders | String(JSON) | JSon array containing all the products purchased in this transaction (e.g. detailOrders=[{"article_id":"988328","articleCode":"ART-988328","articleName":"1 month subscription","monthsValidity":"1"}, {"article_id":"513322","articleCode":"ART-513322","articleName":"1 month subscription","monthsValidity":"1"}]) where article_id is the product_id purchased mostly the only useful field in the JSON |
| parent_order_internalId | int | FATHER ORDER internal Id (internal VNP Id) |
| parent_order_id | String | FATHER ORDER external Id (the external platform Id) |
| parent_order_scope | String | Gift / Business |
