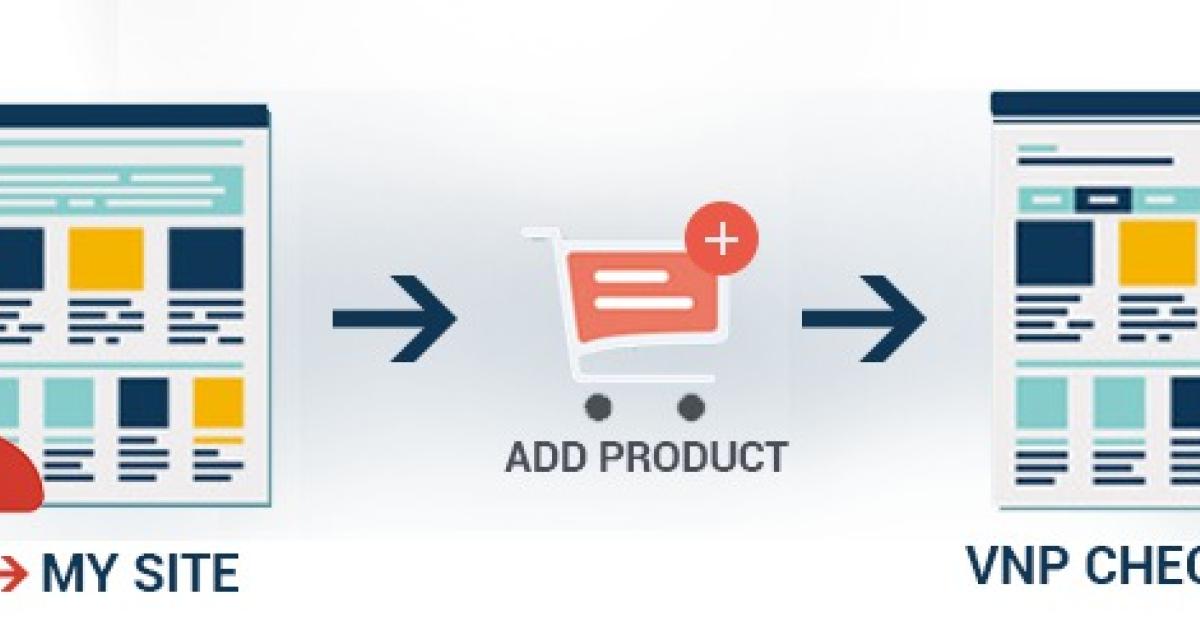

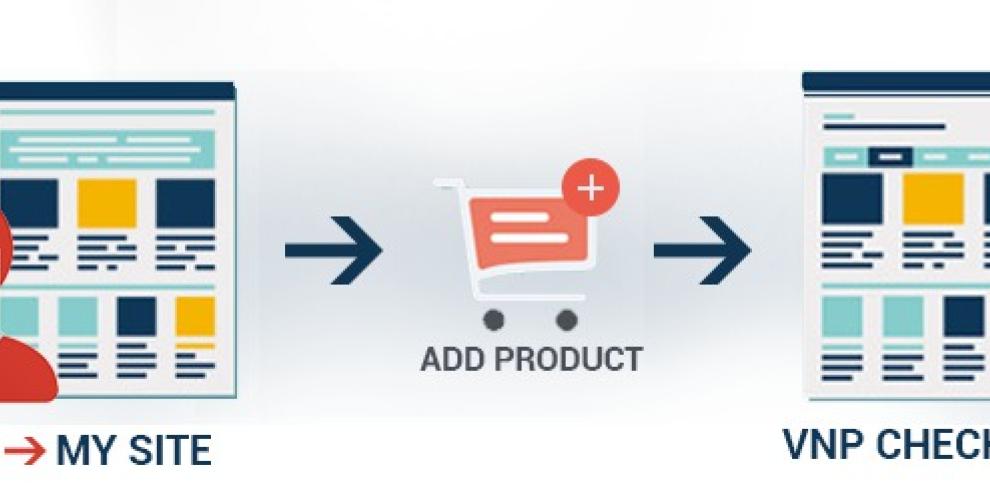

The Flow

The user chooses his products from the ecommerce site, for each choice a call to this service will add or remove products.
once the user completed his shopping he will be redirected to the standard VirtualNewsPaper shop flow with a dedicated cart. From there he will be requested to pay and activate/receive his purchases.

Add a product

When the user chooses add to cart a POST request to this service will add to the user session the product.

Example:

http://checkout.editorname.com/webservice/shop/cartAdd.jsp?productId=492&_=1407775530572

Parameters

PARAMETER NAME	VALUE FORMAT	DESCRIPTION
productId	int	the internal VNP Product ID (can be taken from products panel)
_	symbol (underscore)	Valued with a timestamp could avoid older browser (let's call em Internet Explorer) to cache requests. Not mandatory

Code Example

<html>
  <head>
     <script src="//ajax.googleapis.com/ajax/libs/jquery/1.11.1/jquery.min.js"></script>
  </head>
  <body>
    <button onclick="add_product_to_cart(492)">Add product to Cart</button>

    <script type="text/javascript">
      function add_product_to_cart(vnp_id_product) {
        $.ajax({
          url: "http://checkout.editorname.com/webservice/shop/cartAdd.jsp",
          data: {"productId":vnp_id_product,"_":new Date().getTime()},
          dataType: "json",
          success: function(data) {
            if (data.success) {
              // Product added, do something
            } else {
              // Failed adding product, do something
            }
          }
        })
      }
    </script>
  </body>
</html>

Remove a product

When the user chooses to remove a product from his cart a POST request to this service will remove from the user session the product.

Example:

http://checkout.editorname.com/webservice/shop/cartRemove.jsp?productId=492&_=1407775530572

Parameters

PARAMETER NAME	VALUE FORMAT	DESCRIPTION
productId	int	the internal VNP Product ID (can be taken from products panel)
_	symbol (underscore)	Valued with a timestamp could avoid older browser (let's call em Internet Explorer) to cache requests. Not mandatory

Code Example

<html>
  <head>
     <script src="//ajax.googleapis.com/ajax/libs/jquery/1.11.1/jquery.min.js"></script>
  </head>
  <body>
    <button onclick="remove_product_from_cart(492)">Remove product from Cart</button>

    <script type="text/javascript">
      function remove_product_from_cart(vnp_id_product) {
        $.ajax({
          url: "http://checkout.editorname.com/webservice/shop/cartRemove.jsp",
          data: {"productId":vnp_id_product,"_":new Date().getTime()},
          dataType: "json",
          success: function(data) {
            if (data.success) {
              // Product added, do something
            } else {
              // Failed adding product, do something
            }
          }
        })
      }
    </script>
  </body>
</html>

Add a product with custom price

When the user chooses add to cart a POST request to this service will add to the user session the product.
At the same step a custom price for the product can be choosen

Example:

http://checkout.editorname.com/webservice/shop/cartAdd.jsp?productId=179&_=1407775530572&ts=1407775530572&authCode=396360741fdc4ba600c60df579bc3b70&price_179=9.5

Parameters

PARAMETER NAME	VALUE FORMAT	DESCRIPTION
productId	int	the internal VNP Product ID (can be taken from products panel)
_	symbol (underscore)	Valued with a timestamp could avoid older browser (let's call em Internet Explorer) to cache requests. Not mandatory
ts	int	A key that changes at every single request (you could use a timestamp for example)
authCode	String	The md5 of ts parameter concatenated to the Private WS key (you can find your own in the Settings module) e.g. md5(ts+privateKeyWS)
price_[productId]	float	The price you want set to this product. it must contain the ID of the product (in this case the name of this parameter will be price_179)

Code Example

<!--This example uses JSP and apache commons Digest library-->
<html>
 <html>
  <head>
    <script src="//ajax.googleapis.com/ajax/libs/jquery/1.11.1/jquery.min.js"></script>
  </head>
  <body>
    <button onclick="add_product_to_cart(179)">Add product to Cart</button>

    <script type="text/javascript">
      <%String ts = ""+System.currentTimeMillis();%>
      var ts = '<%=ts%>'
      var authCode = '<%=org.apache.commons.codec.digest.DigestUtils.md5Hex(ts+"9204ce470e2b8812d5a6951c902826c6")%>'
      function add_product_to_cart(vnp_id_product) {
        var postData={};
        postData.productId=vnp_id_product;
        postData["_"]=new Date().getTime();
        postData.ts=ts;
        postData.authCode=authCode;
        postData["price_"+vnp_id_product]=9.5;
        $.ajax({
          url: "http://checkout.editorname.com/webservice/shop/cartAdd.jsp",
          data: postData,
          dataType: "json",
          success: function(data) {
            if (data.success) {
              // Product added, do something
            } else {
              // Failed adding product, do something
            }
          }
        })
      }
    </script>
  </body>
</html>

Important:

Whenever the authCode is wrong no message will be provided and the product will be added to the cart at its full price.

The Response

Each service responds as below:

{
  "cart": {
     "total":14.3, <!--sum of each product in the cart-->
     "items": [ <!-- Array with list of products-->
        {
          "product": {  <!-- Single product instance description -->
            "fullprice":16.9, <!--Originary price of this product-->
            "weight":1, <!--Weigth of the product (used for physical shippings)-->
            "productDescription":"Description", <!-- The description of the product as from ''products'' panel-->
            "label":"Label", <!-- The label of the product as from ''products'' panel-->
            "productId":492, <!-- VNP product ID -->
            "currency":"EUR", <!-- Currency referred to price -->
            "months":1, <!-- Period validity of the product -->
            "price":14.3, <!-- Price of this product -->
            "imageLink":"http://checkout.editorname.com/upload/a261c1b1871a0de09c8333a1662a93a8.jpg", <!-- URL to the image of the product -->
            "issues":"", <!-- Issues associated to this product -->
            "titles":"[ecommerce]", <!-- Titles associated to this product -->
            "productName":"Name", <!-- The name of the product as from ''products'' panel-->
            "availability":61 <!-- How many copies are available in the store -->
          },
          "singlePrice":14.3, <!-- price for each instance of this product -->
          "cartQuantity":1, <!-- how many copies of this product are in the cart -->
          "totalPrice":14.3 <!-- the singlePrice multiplied for the cartQuantity -->
         }
       ],
       "totalWeight":1, <!-- Weight for all the cart -->
       "currency":"EUR" <!-- Currency of the product -->
  },
  "success":true <!-- True or False whenever the product was added/removed from the product for this call -->
}

Go to Cart

When the user completed the shopping can be exposed a button that redirects him to pay.

The url must be:

http://checkout.editorname.com/webservice/shop/initCheckout.jsp

Notes

Prices of products are automatically calculated.
Whenever a custom price is choosen for a product it cannot be changed for the current session. Any attempt of adding product to the cart will increase only the quantity.
