EVO - Adv setup

Upload and configure Banner

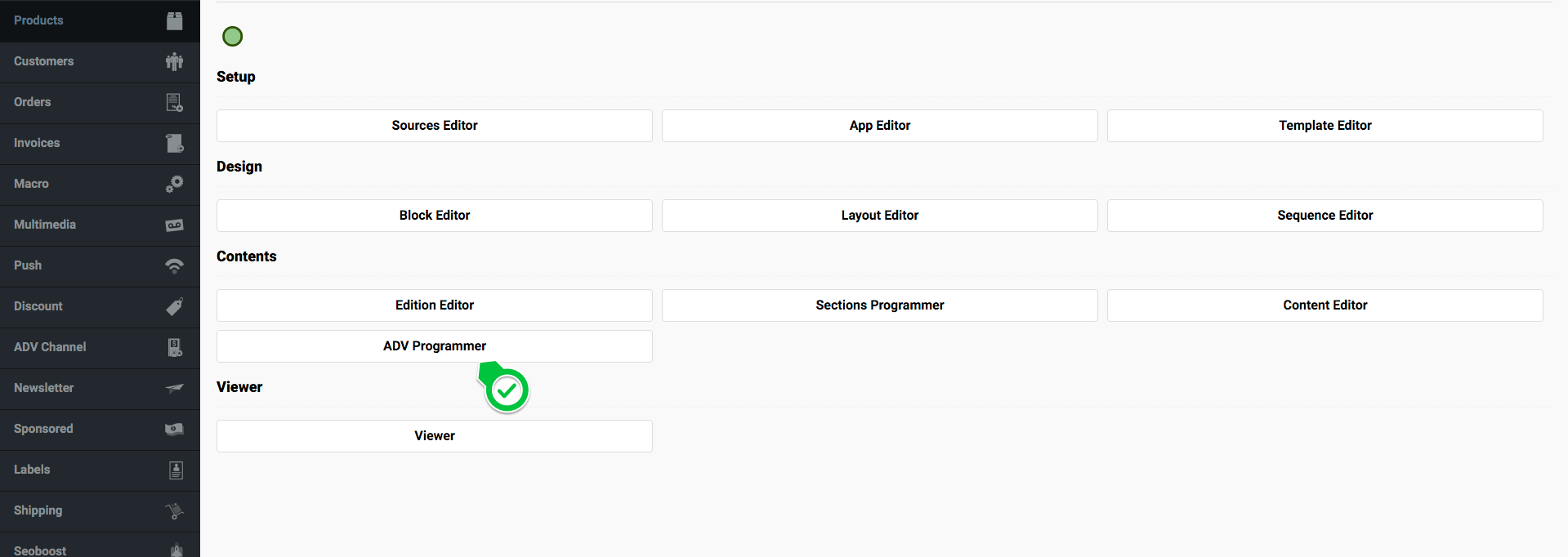

Banners can be set up in the ADV Programming module

At this stage it is possible to choose whenever Add new banner or update / delete existing one

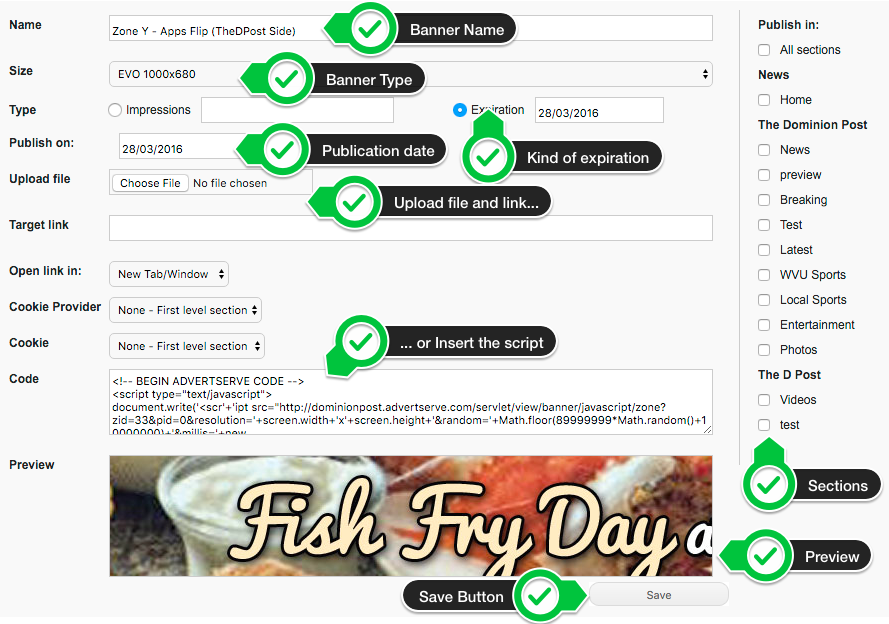

In case of insert or update the following window will be prompted

You have to provide a banner name, a size (format) and upload an image providing a target link

Otherwise

If you want to create a banner starting from script you simply have to paste that script and choose Publish on:  Expiration: dates following you can choose which sections you want to this banner will be published.

In case more than one banner are configured to appear in the same position the system will rotate them randomly.

Prepare the Stream

Create the block

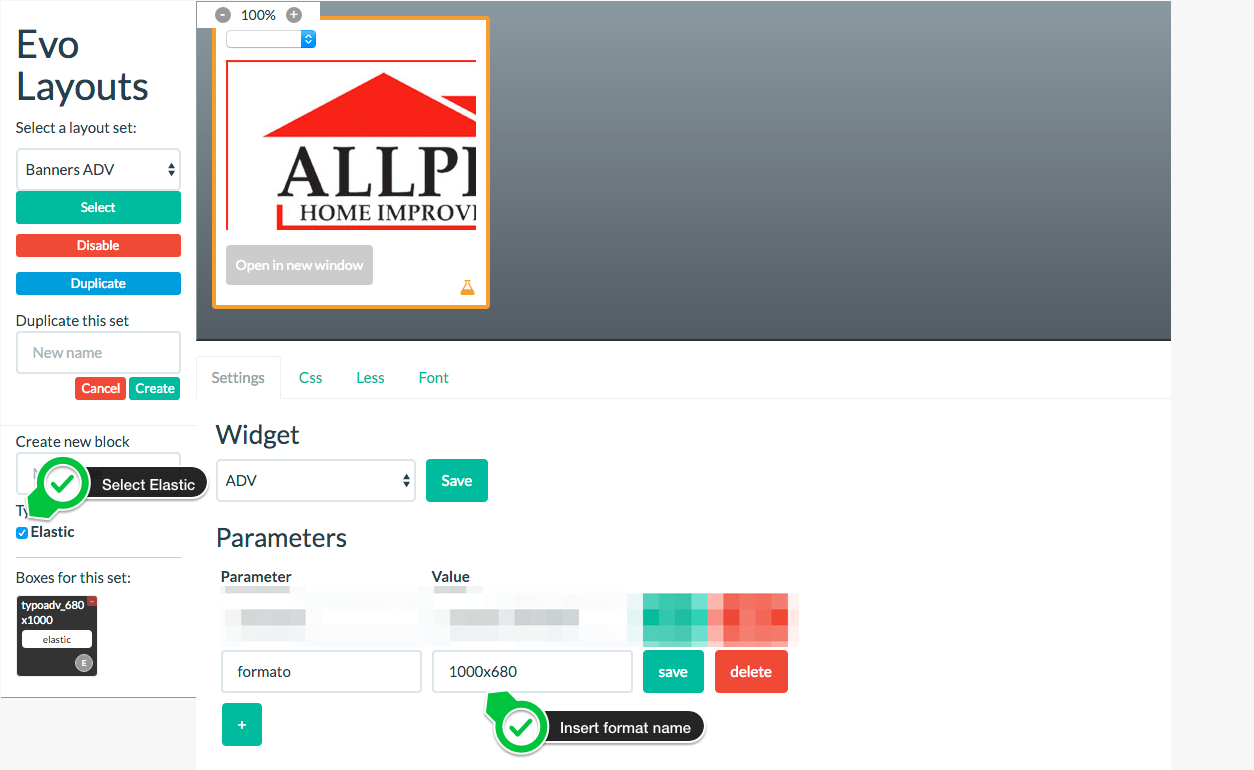

At this stage you can create your BLOCK using the block editor.
Insert a parameter formato with value equal the banner size, the format name

Create the Layout

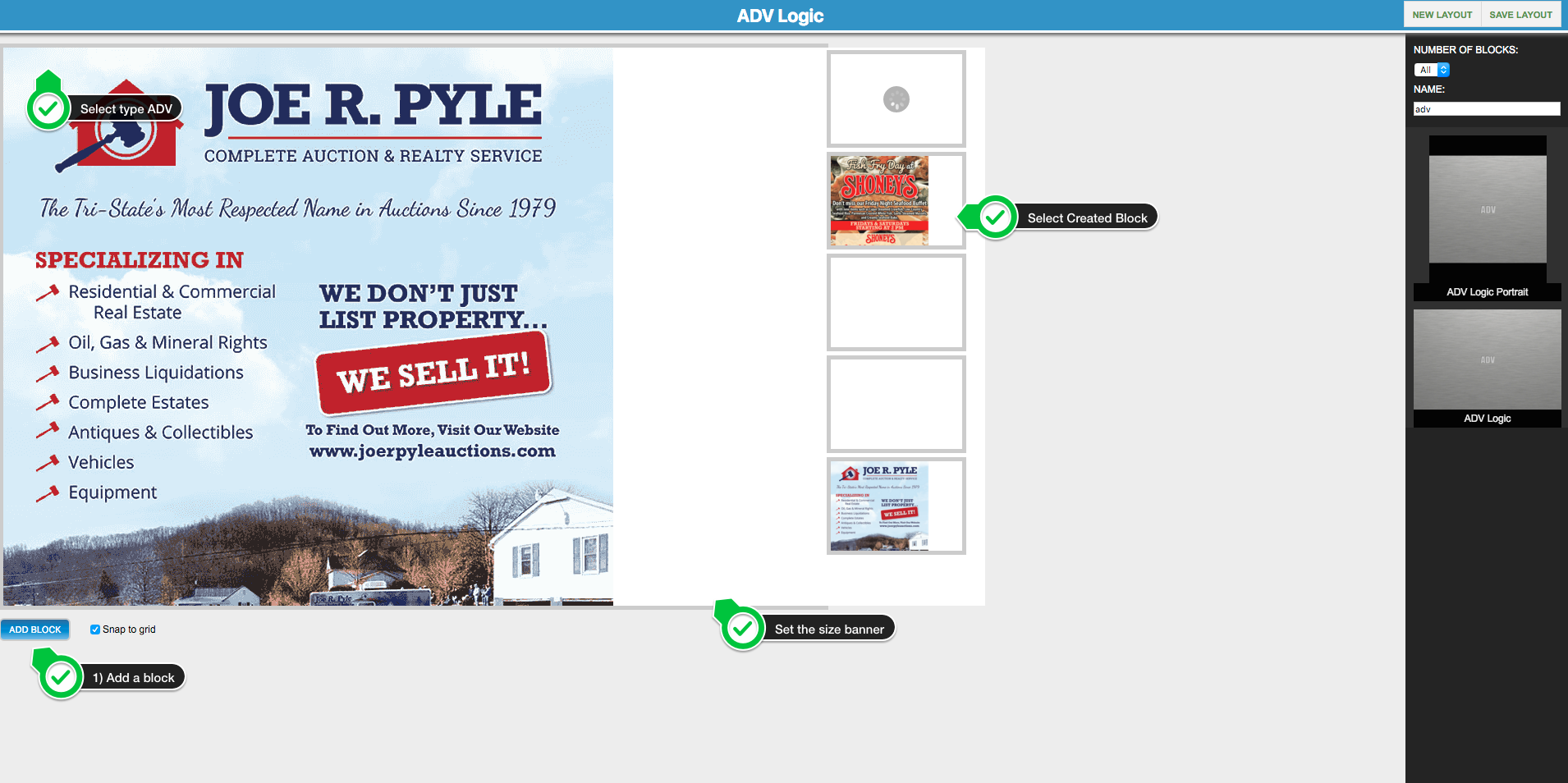

In the Layout Editor Add a BLOCK of type ADV of the same size of the banner Format.

- Connect to the Newly created Block

- Repeat for Landscape and Portrait

Use the button on the Top-Right to save layout

Connect the Layout to the desired Sequence

Use the Sequence Editor to add this newly created Layout to the Sequence how many times you need.

Summary:

Using correct formats you can create any format of banner, The suggested is to do the Elastic one and add there how many scripts you need.

In case you need formats please contact the support of Virtualcom in order to provide new formats.
